Dolores: Our 2003 Tundra Complete Build Page
Since we have had several people ask for a build page, I figured I would start to put together a completely chronological list of events and details about Dolores since the day we got her to “present”. This page will be updated periodically and will likely lag behind a little on the current state of the truck, but we will do our best to keep it current.
May 21st ‘21, Purchase Dolores.
Christina and I purchased Dolores. We were thankful to find the truck we so badly wanted less than 50 miles from our house.
2003 Toyota Tundra SR5 3.4l V6 Manual 5 speed 4x4
Access Cab, 6.5’ bed
No lift, original tire size 245/70/16 factory steel wheels
149,000 miles, one owner
Dolores felt like a diamond in the rough. We saw a lot of potential in her, but we knew that it was going to need some love to get to the point we wanted.
July ‘21, Tires & Wheels.
We installed a new set of tires and a used set of first gen Tacoma wheels on the truck. We picked Goodyear Wrangler Ultraterrain AT tires sized in 265/75/16 with a load rating of 116S. We picked this size because of it being one of the more commonly produced sizes, should we need to purchase another tire while traveling it should be easier to come across. We chose the lower load rating in favor of a smoother rider quality rather than if we would have gone with E Rated tires.
August ‘21, Suspension.
We installed an Old Man Emu lift kit. We used OME 2884 springs up front and a single add-a-leaf in the rear to get a level riding, 2.5” lift all around. During to process we installed new, upper ball joints, as well as new break rotors, and pads all around. In addition, the truck got a 1” Diff drop kit installed. We took the truck to get an alignment done and we also had new lower control arms, lower ball joints, and new CV axels installed.
August ‘21, Bed Platform.
We built our sleeping platform in the bed of the truck. We wrote an entire blog post talking about this so if you would like to read more about it click here.
September ‘21, Virginia, Maine Road Trip.
We set off for our first big trip in Dolores. Driving from Colorado to Virginia then to Maine, and back home to Colorado. The bed platform buildout did great!
March ‘22, Cell Signal Booster.
We installed a weBoost Drive Reach RV which has helped greatly with cell phone coverage in areas that otherwise had very weak signal. We mounted the antenna to a ditch light mount and tucked away all other electronic components of it within our center console. By this point, we had also added a stubby radio antenna.
April ‘22, Recessed Winch Mount.
We installed a Smittybilt X2O GEN2 10K. The winch is mounted using a mount from Amp’d Up LLC bracket that fits nicely behind the factory bumper. We finished the synthetic winch line with a Factor 55 Ultrahook for added safety and threaded the line through a Factor 55 Hawse, all chosen in a color to closely match our paint. We went with this winch setup to help save as much weight on our build as possible, and also to keep a low-profile appearance.
May ‘22, GFC Install, & more.
These have been some of the most significant changes to our truck so far. We added a Prinsu Rack for storage over the cab where we carry 2 Front Runner WolF Pack boxes and 2 Wavian Jerry Cans. During this time frame, we sold our original topper and picked up a Go Fast Camper, and added an Overland Vehicle Systems 270º awning. We also shortened the Prinsu rack by about 16” to fit with the GFC.
June ‘22, Traction Boards Mounted.
Traction boards are mounted to the driver's side of the GFC side panel. They are held in place with lag bolts that pass through mounting holes in the traction boards with large plastic turn knobs on the inside of the camper, fender washer with rubber washers help to keep rain and water out.
June ‘22, Starlink.
We ordered Starlink, and our ability to be a bit more nomadic while working was revolutionized.
June ‘22, Solar Install.
A small solar system is added to our camper. There is a complete blog post about it here if you would like to read more about it specifically.
Jun ‘22, Starlink Mount.
Starlink Pivot mount is added. This allows us to mount the Starlink dish to our roof, and raise it safely above obstructions as well getting it off the ground so it’s less likely to get damaged. It was mounted using a 90º aluminum angle that is mounted to the side of our GFT top with T nuts that GFC makes to fit the track system in our camper. The Pivot mount is then bolted to the angle using Rivnuts that I installed into the angle. We only have the dish on the roof when the truck is stationary.
June 16th ‘22, Canada & Alaska Road Trip.
We set off on the longest trip we have done yet. Colorado to the Arctic Ocean at Tuktoyuktuk, Northwest Territories, then down to Alaska before returning home 4 months later. There is an ongoing blog series about that trip that you can read more about here.

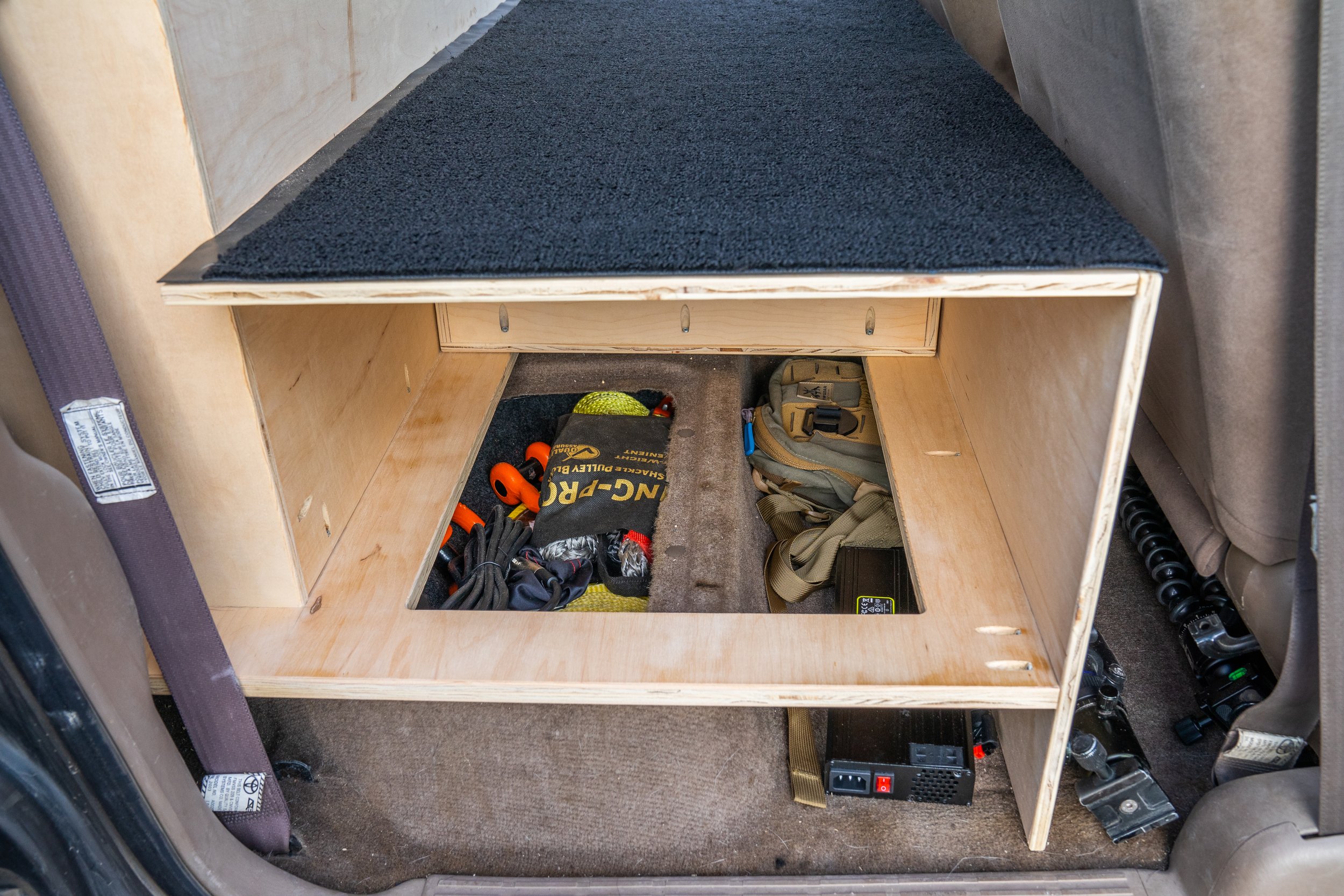

November ‘22, Rear Seat Delete and Storage.
Back home in Colorado prepping for the next trip. Back seat delete and storage system is added.
November ‘23, 100 Series Snorkel Installed.
I’ve long hated the look of snorkels, and still do, especially one on my personal truck. However, we have now crossed several rivers with Dolores, the first being the namesake of our truck, and another being deep enough that I feared we’d flood the motor. It was finally a justifiable expense for me, it sure beats a hydro-locked motor. We used a knockoff 100 series Landcruiser snorkel since there isn’t one made for the 1st gen Tundra anymore. During this install, the WeBoost was relocated to the driver’s side from its original passenger-side location.
November ‘22, Solar Build #2, Fridge and water.
We redesigned our solar system. Switching from 100w of solar to 300w and tripling our battery storage. There is a complete blog post here with full details. In that process, we added a Dometic CFX 35 fridge and a small Dometic GO hydration facet.
Nov ‘22, Custom Leaf Spring Install.
Alcan custom leaf springs are installed at their shop in Grand Junction. Unhappy with the ride quality of the add-a-leaf pack after our Alaska/Canada trip, we decided to order springs to support 1,400lbs and provide a rear lift from factory to 2.5” so that we would get our factory rake angle back.
November 11th, South West & Baja Road Trip.
We departed for the road trip that we are still currently on, touring through the southwestern United States, and spending time in Baja California. A series of blog posts will eventually follow this trip as well, in time.
November 13th, New Clutch.
This was an unplanned event, our clutch release bearing failed after 190k miles, it had a good run. Tamecula Toyota helped us in replacing the clutch.
January ‘23, New Tires and Valves.
After 40,000 miles of hard use, our tires were due for replacement. We again went with the same Goodyear Wrangler Ultraterrain AT 265/75/16 116S tires. By this point, these tires had proven themselves on the Dempster Highway and nearly countless miles offroading in Utah and Colorado, so we feel very confident in them. We also installed some Colby Valve Ultimate Tire Valves. These valves are unique in that they are an all-brass construction that is installable from the outside of the wheel, aiding to trailside repairs should we ever damage a valve stem.
June ‘23, Center Carrier Bearing.
After driving a significant portion of the Baja Divide Trail Dolores was in need of some TLC, we started ticking off the list by replacing our worn and sagging center carrier bearing that supports our drive shaft.
June ‘23, Suspension Maxx Endlinks.
Another wear point that needed some attention after Baja was our sway bar end links, we installed a longer end link produced by Suspension Maxx that will hopefully work better with the lift on the front end of the truck.
June ‘23, Alu Box Storage.
In preparation for carrying around our recently purchased packrafts we decided to swap out our roof storage boxes for some Alu Box 60L boxes, these are weatherproof and will greatly protect our boats during travel.
June ‘23, Build Out Remodel.
After living in the truck at this point for well over a year, and still using the build-out that we had before the GFC it was time for a refresh. We will eventually do a full blog post on this build but here are the photo hight lights.
June ‘23, Cab 12volt Power.
A small challenge that we have faced while traveling has been keeping the computer charged when one of us is working in the front passenger seat, so we set about providing power from the house battery to the cab at a rapid charge 65watt USBc port.
June ‘23, New Lower Ball Joints, Lower Shock Bushings, CV Axels, and Wheel Bearings.
I handled the first half of this project at home, replacing the lower shock bushing, and lower ball joints. But handed Dolores over to the pros for the second half to replace our front wheel bearings and CV axels, all with genuine Toyota parts.
July ‘23, New Shifter Bushing.
After nearly 2o years the truck is showing some age. We replaced the shift bushing to get back a new-from-factory shifting feel. The truck now smoothly goes in and out of gear, as well as stays there on really rough roads.
August ‘23, Drip Rail Install
We had been waiting to do this mod for a while. Adding the Drip Rails to our camper will vastly improve it on rainy days and solve an annoying issue of water dripping off the leading corners of our camper and into the rear doors of the truck when they are open.
October ‘23, MAXTRAX MKII installed
After carrying around some Amazon knockoff traction boards for a while it was finally time to replace them with something proper, and easier to use when needed. We are super grateful for getting hooked up with these MAXTRAX MKII along with the 17mm mounting pins that will allow us to lock the boards in place.
We bolted the pins directly through our driver’s side panel, and to assist in lifting the additional weight we picked up a set of slightly stronger gas struts from GFC.
To find the mounting position we started by taping off the inside of our panel so that we could make any needed marks with a pen and not have to work about removing the pen marks when the job was done. We then marked on the tape where the diagonal supports are so that the mounting pens wouldn’t interfere with them. Once we had that, we then marked the center of the panel relative to the front and back. From there we then measured out the mounting hole pattern on the traction boards and transferred it to the panel. We mounted the traction boards as high as we could so that gas struts would struggle less to open the panel, but not so high that the boards interfered with the top thing.
October ‘23, Weight Reduction & Venting
In an effort to shave some more weight from the bed of our truck and to also help our Goal Zero battery to breath we removed even more material from one of the vertical portions of our build in the back. We did this by drilling 1” holes on a 2” square grid pattern.
Oct ‘23 Baofeng Radio and Antenna
Wanting to be able to communicate more reliably between distant vehicles and to make spotting on obstacles easier, I installed a very simple radio setup in the truck. I used one of our Baofeng radios that we already had, ran an antenna wire out from the cab of the truck to the GFC where I mounted a small whip antenna that we already had. It was a simple and effective solution for getting a stronger radio signal outside of the metal enclosure of the cab. After the install all of the external antenna wire was wrapped in Alex Tech Braided Cable Sleeve to protect it more.
Radio Parts list:
Antenna | SMA Bulk Head | GFC Mount | Antenna Wire | Flexible SMA Wire | Radio | Alex Tech Braided Sleeve
Oct ‘23 Starter, Alternator & Belts
When going to leave camp one morning our starter was completely responseless, a few taps from the blunt end of the hatchet got it started but that was the clear indication needed to finally replace it. The original one made a good run making it to 205,000 miles
Out with the old and in with a slightly more powerful model.
The starter job sparked a string of preventive maintenance getting ticked off. The Truck also received a new alternator at the same time we stuck with the original alternator size, but in hindsight it wouldn’t have hurt to sized up. We also replaced all the belts shortly after as well.
Oct ‘23 New CV axles… Again…
several weeks earlier while at camp I noticed a packrat running around our truck. We attempted but were unsuccessful at chasing it off. Several days later I noticed some grease being thrown from our brand-new CV Axles and quickly learned that the rat had chewed up our boots on the new axles. We were unable to order new boots by themselves so we were regretfully forced into replacing them again, this time we decided to get a set from CVJ Axles in Denver. They offer a lot of options but one of them is to take genuine Toyota Axles and add a high-angle inner CV boot to it that is hopefully more durable on lifted trucks than the stock setup.
Our rodent damaged boot
New CVJ axle with high-angle boot
Nov ‘23 Kingpin 40” V-series Light Bar
Several months ago Kingpin approached us and asked if we would be interested in trying out one of their lights. Pretty excited we said yes! We installed their V-SERIES 40" LIGHT BAR and Smart Touch Dimmer Switch on the rear hatch of our GFC using VHB tape to stick it into place. We chose to mount it close to the hinge of our panel rather than the end so that we can use it outside while hanging out or cooking and also inside whenever we hang out in there as well. Since it is able to rotate in the mounting hardware we are able to bounce the light off our shiny interior when we are inside and also pivot it to illuminate our kitchen area when we are outside as well. We added Alex Tech Braided Sleeves to cover the wires and protect the butt crimp that we used when we wired it in. It’s been several months since we installed the light, it’s worked flawlessly the whole time and is one of the few things in our truck that we use every single day!
Kingpin is the first company that we have worked with in this fashion and we feel extremely grateful for their support! This was one of the first products that we truly felt good about, have a direct need for, fit within our current build, offers something that we would benefit from every day, and would have purchased with our own money. So please know that the few times we promote companies or products its something that we truly feel good about. They have been gracious enough to extend a promo code that we can share, so if you feel like this is something that would elevate your camping experience you can use the code “DIRTTRAILSWANTED” to get 15% off. Following this link also does the same.
April ‘24 Dash Cam & Midland Radio Upgrade
We were generously gifted a Midland dbr2500 Radio from a friend when they learned about my budding radio habit. Aside from being much easier to operate than the Baofeng setup while driving this radio and the much stronger antenna that we installed as part of it is all around more powerful than the previous setup. Combined they allow us to both transmit and receive from further distances. Midland no longer makes this radio but a nearly identical option from Anytone is available on Amazon.
At the same time as the radio, we installed a Garmin Dash Cam Mini 2 in preparation for an upcoming trip to the East Coast. Both the radio and the Garmin are being powered by our house battery.
That’s it for now…
If you have ever built an adventure vehicle, you know they are never truly “finished” and that certainly is the case for Dolores as well. Currently, we feel like the truck is in excellent condition and ready for adventure!
